Power Distribution SeriesTM - Interconnect LBI

Remote Power Interconnect LBI Transit Case is Utilized for the Connection of User
Equipment to up to 4 PowergridM UPS systems. Single or Three Phase Options.

Home Power Distribution – Remote Power Interconnect LBI

Side-Nav_Image-01

Custom Sidebar

Aenean convallis sapien nulla, et pretium dui luctus sed. Suspendisse lobortis est nibh, vel viverra libero lobortis sit amet. Vivamus pharetra pulvinar leo ut commodo. Maecenas dictum magna id risus fringilla, et ornare lorem consequat. Sed neque lorem, cursus in odio vitae, varius lobortis tortor. Maecenas sit amet orci leo. Vivamus nec sapien non nisi commodo aliquet. Nulla non dictum odio, vitae iaculis libero. Nulla eget pellentesque urna. Nullam scelerisque eros leo, quis sagittis dui suscipit sed. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia Curae; Pellentesque eleifend dolor quis feugiat porta. Morbi et nulla hendrerit, tincidunt libero in, molestie nibh.

MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature

MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103

MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275

Remote Power Interconnect LBI Transit Case Power Supply Power Distribution Designed to meet the Military Standards MIL STD 1275 – MIL STD 1399 – MIL STD 704 – MIL STD 461 – MIL STD 810

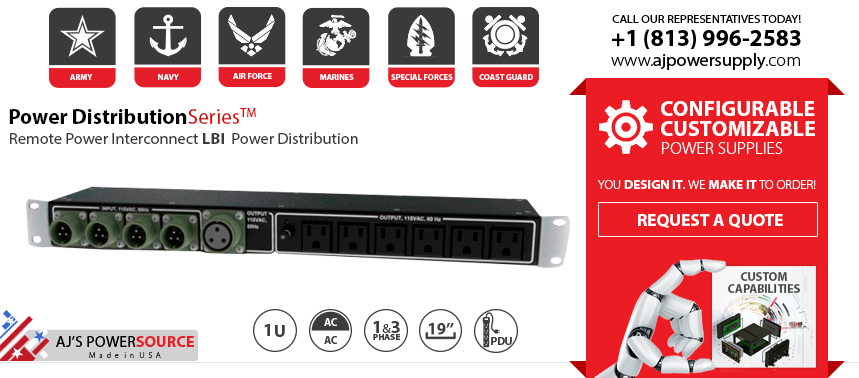

Remote Power Interconnect LBI Transit Case Power Supply Power Distribution is Utilized for the Connection of User Equipment to up to 4 PowergridM UPS systems. Single or Three Phase Options.

Each PowergridM Power Distribution unit is equipped with 6 standard NEMA 5-15P connections for interconnecting user equipment and 4 male MIL-style connectors for the power connection to up to 4 PowergridM UPS systems. The unit also hosts one MIL-style Female connector for the interconnection or Daisy Chaining of one PG-RPIM-STD if additional user equipment connections are required. The unit is equipped with one primary power breaker that will disengage power to all user equipment ports as needed. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility.

MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.

Highlights

• Supports the connection of up to 4 PowergridM UPS systems.
• Provides a Daisy Chain Port for the Connection of a PG-RPIM-STD for Additional Equipment Connections.
• Push/Pull Master Breaker for Power Disconnect for All Connections.
• Remove and Rotate Mounting Brackets for Maximum Flexibility.
