AC to DC power supplies specifically designed to convert Shipboard AC Mains power
to a stable, distributable DC voltage to be used in Zonal Power Management Systems.
MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103
MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275

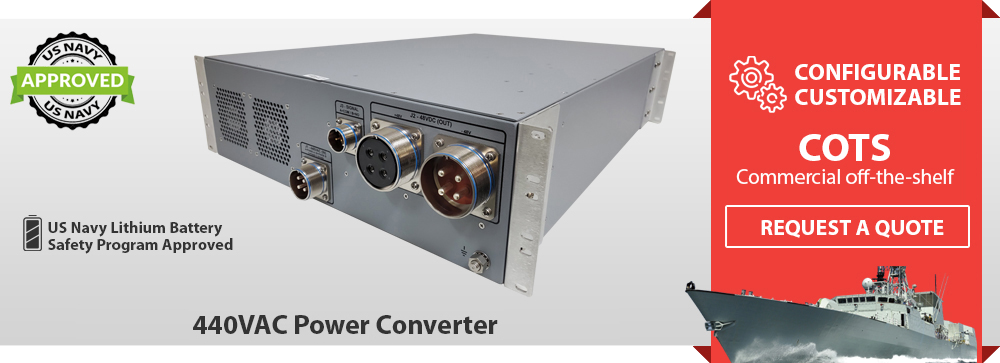

Shipboard AC to DC Power Supply | Supports Zonal Power Systems | MIL-STD-1399
AJ’s Power Source has developed a family of AC to DC power supplies specifically designed to convert Shipboard AC Mains power to a stable, distributable DC voltage to be used in Zonal Power Management Systems.
Our Shipboard AC to DC Power Supply will filter out transient voltages to provide a Clean and Stable Power Bus for sensitive equipment. The highly Reliable and Rugged Power Supply can be sized to meet your exact power needs up to 14,400 Watts. The Power Supply is designed to meet applicable MIL Standards including MIL-STD-1399, MIL-STD-461, MIL-STD-810.
Highlights
- AC Input Voltage Range: 350 – 528VAC
- Frequency Range: 47 – 63Hz
- Three Phase Delta, 3 Wire + Ground
- Rated Output Voltage: 24 or 48Vdc
- Rated Max. Continuous Current: 300A
- Rated Power: 14,400 Watts max
- Line Regulation: +/-1%
- Load Regulation : +/-1%
- Efficiency (typical): >/=90 Typical (75-100% rated current)
-
Power Factor: 0.93 typical
Leakage Current: /=5.0 mAmps AC
Weight: Less or equal than 30 lbs.Protection
– Input Switch/Breaker 40A, 3 POLE, 277/480VAC, TOGGLE
– Over Voltage Power cycle required to recover
– Over TemperatureEnvironmental
– Operating Temperature Range -10 to +50C*
– Storage Temperature Range -40 to +85C*
– Working Humidity 20 – 90%, non-condensing*
– Altitude 10,000ft (Operating) / 40,000ft (Non-Operating)*Physical Properties
– Dimensions: 5.29”H x 17.10”W x 26.00”D
– Mounting: 3U 19 Inch Rack
– Weight: MIL Standards
– Power Quality MIL-STD-1399*
– Vibration MIL-STD-810G*
– Functional Shock MIL-STD-810G*
– Sand/Dust MIL-STD-810G* (with optional filters)
– EMI/EMC – Conducted MIL-STD461F (CE101, CE102, CS101, CS106, CS114, CS116)*
– EMI/EMC – Radiated MIL-STD-461F (RE101, RE102, RS101, RS103)** Designed to meet, formal certification requires lab testing
Customized models available
-
