Military Vehicle AC-DC & DC-DC High Output Power Converter 2500W @ 28VDC – Part Number: MIL-PWR-VIC-28-2500
CONTACT FOR PRICE
Highlights
• Universal VAC input voltage range of 100-264VAC
• Universal VDC Input voltage range of 20-36VDC
• High Efficiency (~85%)
• High Temperature Range (-20C to +60C)
• Standard Mechanical Enclosure designed for all environments
• Ingress Protection (IP) rating of IP66
• Industry Standard Connection Points
• Low Weight to Power Ratio
The MIL-PWR-VIC SeriesTM is a Military Vehicle AC-DC & DC-DC High Output Power Converter Designed for MRAP – JLTV – HMMWV – M1A2 Abrams Tank – Stryker – Buffalo – LTATV – Cougar – M9 and more.
The MIL-PWR-VIC SeriesTM is a ruggedized military compliant AC-DC & DC-DC high power system built for deployment and operations equipment. This series is available to all military, homeland security and government contractors. Light weight and built for reliability, these fully ruggedized systems are ready for worldwide deployment.
The MIL-PWR-VIC SeriesTM provides 28 VDC Military (MIL-STD-1275) compliant DC input (20-36VDC Range) or Universal VAC (100-264VAC) input from shore power or generator power with a multitude of output possibilities to include custom systems as required. These systems have internal surge suppression and wide temperature ranges. The MIL-PWR-VIC SeriesTM is available in multiple different color configurations and can be customized to meet desired requirements.

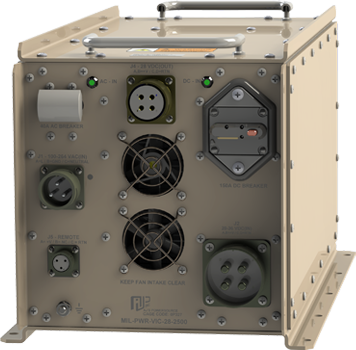

Our overall concept consists of aluminum watertight sealed case with a central heat plenum for front to back airflow (Can also be configured with an external heat sink). The MIL-PWR-VIC-28-2500 has been designed as a ruggedized military power system to hold up to MIL-STD-810G Shock and Vibration. The input/output will be provided via a Military Circular Connectors as well as sealed AC & DC input circuit breakers. This power supply is designed with weight and size in mind and has built in handles for easy carrying.
-
DC Input Voltage: 20-36VDC
AC Input voltage: 100-264VAC
Operating Temperature: -20C to +70C
Storage Temperature: -20C to +85C
Output Voltage: 28VDC
Output Power: 2500 WattsEfficiency: 85%
Over Current Protection
Over Voltage Protection
Reverse Polarity Protection
Weight: 48LBS
Dimensions: 10.3”H x 10.6”W x 20L -
