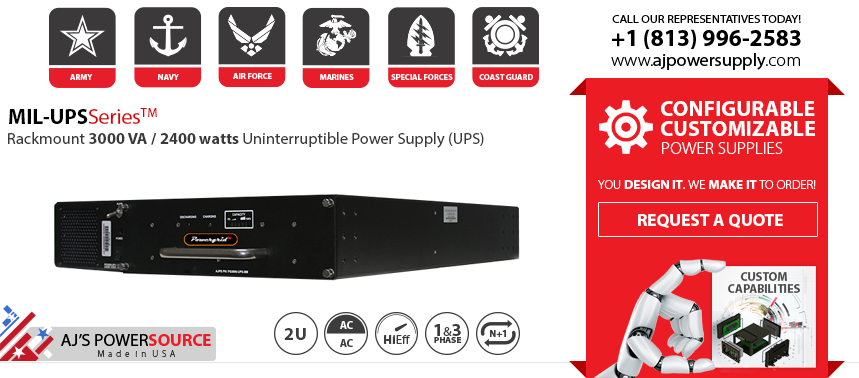

The MIL-UPS SeriesTM – Is a rugged 3000 VA / 2400 watts full double conversion Rack mount
Tactical Uninterruptible Power Supply UPS in a 2 Unit rugged chassis that is less than 50 pounds.
MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103
MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
MIL-STD-1399-300B Type I
MIL-STD-1275
Rugged MIL Grade 3000VA / 2400 Watts Uninterruptible Power Supply UPS. Designed to meet the MIL STD 810 and more
Rugged Mil Grade 3000 VA / 2400 watts UPS is a Full Double Conversion Rack Mount Tactical Uninterruptible Power Supply in a 2U (3.48” High) Rugged Chassis That is 24” in Length Weighing Less Than 50 Pounds.
The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to four (4) of the PowergridM 3000 units to be interconnected to create a 2400, 4800, 7200, or 9600 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible power grid for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors. With Stacking and Power Sharing cables attached, this system provides N+1 redundancy.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
| Part Number | View Datasheet | Input Voltage / Phase | Output Voltage | Output Power & Frequency |
|---|---|---|---|---|
| PG3000-UPS |
|
100 – 264 VAC / Single | 3000VAC | 2400 Watts / 60Hz |
| PG3000-UPS-230 |
|
100 – 264 VAC / Single or Dual | 3000VAC | 1200 Watts / 50Hz |
| PG3000-UPS-3PH |
|
208 – 220VAC / Three | 3000VAC | 2400 Watts / 60Hz |
| PG3000-UPS-RSD |
|
208 -220 VAC / Three | 3000VAC | 2400 Watts / 60Hz |
| PG3000-UPS-3P-440 |
|
440VAC / Three | 3000VAC | 2400 Watts / 60Hz |
| PG3000-UPS-DC24 |
|
100-240VAC / Single | 3000VAC | 2000 Watts / 47-63Hz |
| PG3000-UPS-DC28 |
|
100-240VAC / Single | 3000VAC | 2000 Watts / 47-63Hz |
| PG3000-UPS-DC28-3P |
|
108-118VAC / Three | 3000VAC | 2400 Watts / 393-407Hz |
Highlights
• Ruggedized 2U 2400 Watts / 3000 VA weight in at 50 Lbs.
• Available in 1/2/3 phase input power configurations.
• Stack and Interconnect Design 2400/4800/7200/9600 watts.
• Hot Swap Battery @ 12 Lbs Each – 12+ Min Hold Time.
• Universal AC Input of 100-264 VAC & from 47 – 63, 400 Hz,
• DC Input at 42 – 56 VDC.
• VAC Output Voltage of 120V 60 Hz / 230V 50 Hz.
• Dual Computer Controlled Inverter Design.
• Based Network for Power Management and Reporting.
• Over Voltage Capacity for Managed In-Rush and Start up.
• Over Voltage & Over Temperature Protection Circuits.
• Lightning Protection with Safety Ground Connection.
Special Features
1U 800 watts UPS – Rack mount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 1000 watts UPS – Rack mount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Rack mount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Rack mount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
2U 3000 VA UPS – Rack mount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Rack mount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
-
AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz.
(Single, Dual, and Three Phase options available).
DC Input Voltage: 42-56 VDC (optional).
Battery Backup: 12 minutes at 25C, 80% Load.
Available Output Voltages: 120 or 230 VAC True Sine wave.
Output Frequency: 50Hz or 60Hz.
Harmonic Distortion: <2% with resistive load. Output Power: 2400 Watts / 3000 VA (Volt Amps).
Efficiency: 80%.
Startup Time: <30 Seconds.Status Monitoring & Reporting: SNMP (optional).
Physical Dimensions: 3.48”H/17.1”W/24”D.
Cooling: Front to Rear based internal airflow.
Weight: 50 Lbs.
Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
Temperature: – 20 to +50C.
Humidity: 0-95% non-condensing.
Fungus: In accordance with MIL-STD-810G.
Sand & Dust: MIL-STD-810G (with optional filters).
Vibration: MIL-STD-810G.
Functional Shock: MIL-STD-810G – Test Reports Available. -
