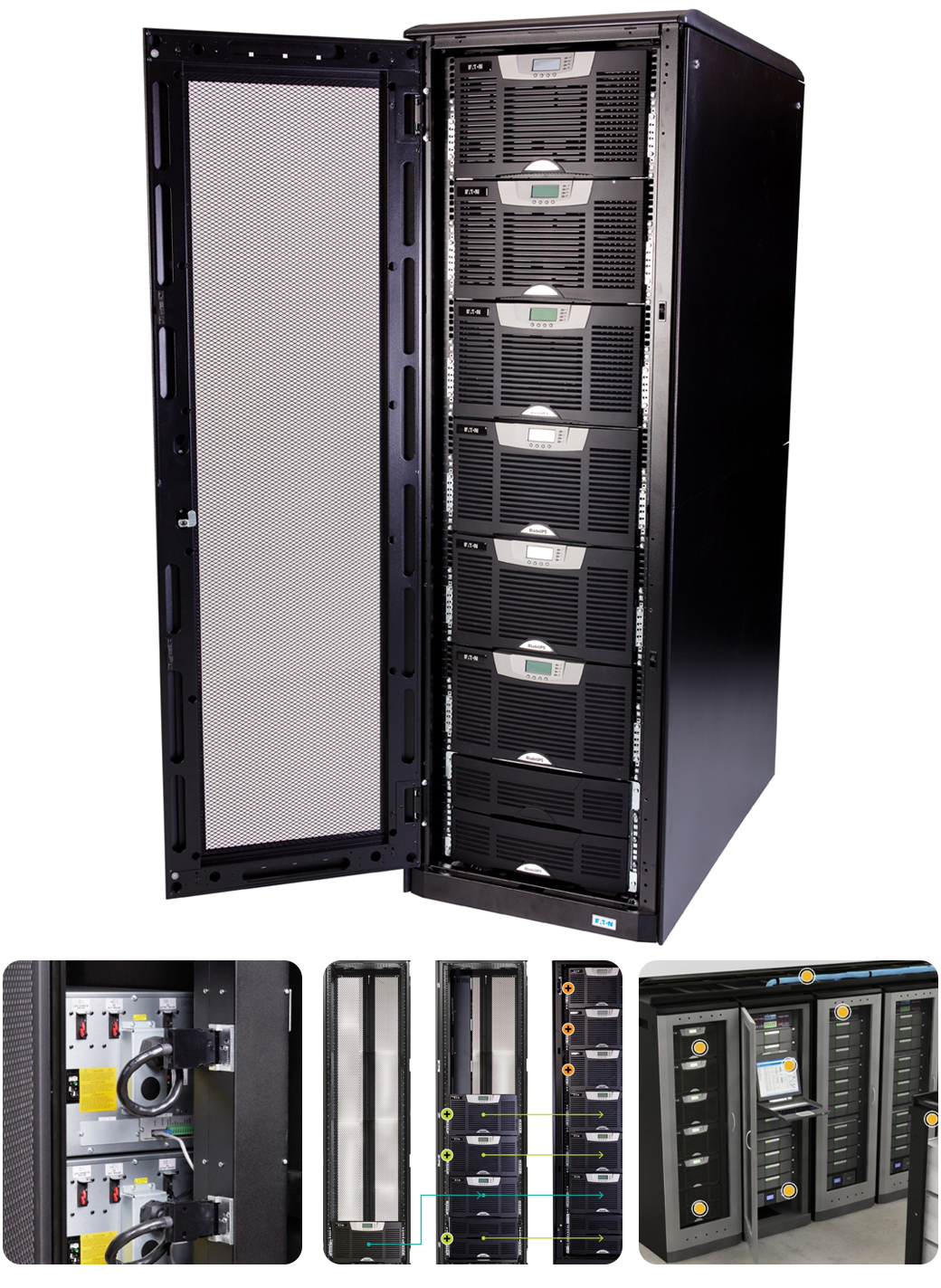

HIGHLIGHTS
POWER RATING: 5-60 Kw
VOLTAGE: 208 and 400 Vac models
FREQUENCY: 50/60 Hz
TOPOLOGY: Double conversion on demand
EFFICIENCY: Up to 98%
CONFIGURATION: Rackmount

COMMUNICATIONS AND USER INTERFACE
SOFTWARE COMPATIBILITY: UPS ships with IPM and IPP software
X-SLOT BAYS: Two
CONTROL PANEL LCD: Two lines by 20 characters / Four menu-driven interface buttons / Four status-at-a-glance LEDs
MULTI-LANGUAGE: English standard / 20 languages available
CONFIGURATION CHANGES: User capable, firmware auto configures
DRY CONTACT INPUTS: Two, user-configurable
DRY CONTACT OUTPUTS: One, user-configurable

WARRANTY
STANDARD: 18 months from date of shipment
WARRANTY REPAIR: Factory depot repair or replace

SERVICE
INSTALLATION: User capable, optional factory serivce available
PREVENTIVE MAINTENANCE: User capable, optional factory serivce available
CORRECTIVE MAINTENANCE: User capable, optional factory serivce available
SERVICEABILITY: Hot-swappable batteries, Hot-swappable electronics modules, Automated internal maintenance bypass, Auto-configure firmware, Flash firmware upgradeable

CERTIFICATIONS
SAFETY: 208V models: UL1778, cUL / 400V models: CE, EN 62040-1, EN 60950-1: 2006, cULus
EMI/EMC: 208V models: FCC Part 15 Class A / EN 62040-2: 2006
SURGE PROTECTION: 208V ANSI C62.41, Cat B-3 EN 62000-4-5
ADDITIONAL RATINGS: EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
HAZARDOUS MATERIALS (ROHS): EU Directive 2002/95/EC

INPUT CHARACTERISTICS
INPUT VOLTAGE: 208 and 400 Vac models
VOLTAGE RANGE: 208V models: 180 to 265 Vac
400V models: 311 to 500 Vac
FREQUENCY RANGE: 50 or 60 Hz, ±5 Hz
INPUT CURRENCY DISTORTION: <5% with IT loads (PFC power supplies) INPUT POWER FACTOR >0.99 with IT loads (PFC power supplies)

INRUSH CURRENT
Load dependent in high efficiency (HE) mode;
100% in normal mode
INPUT REQUIREMENTS: Three-phase, four-wire + ground
BYPASS SOURCE: Same as input (Single feed)

GENERATOR COMPATIBILITY
Fast sync slew rate for generator synchronization, programmable return to AC source delay

OUTPUT CHARACTERISTICS
RATED OUTPUT VOLTAGE: 208V models: 180 to 225 Vac, Ph to Ph
400V models: 180 to 240 Vac, Ph to N

OUTPUT CONFIGURATION
Three-phase, four-wire + ground
OUTPUT FREQUENCY (NOMINAL): 50 to 60 Hz auto-detection on startup
FREQUENCY REGULATION: 0.1 Hz free running
LOAD POWER FACTOR RANGE: Lagging: 0.7 Leading: 0.9
TOTAL OUTPUT VOLTAGE DISTORTION: <3% with IT loads (PFC power supplies) <5% non-linear or non-PFC power supplies

BATTERY TYPE
VRLA-AGM
BATTERY STRING VOLTAGE: 240 Vdc
BATTERY TEST: Automatic battery test standard
Remote scheduling capable
Manual battery test from front display

BATTERY RECHARGE PROFILE
ABM three-stage charging technology
BATTERY CUT-OFF VOLTAGE: Variable from 1.67 VPC at <5 minute runtime to 1.75 VPC at >90 minute runtime
BATTERY LOW CONDITION: Announced with alarm
EXTENDED BATTERIES: Up to four 3U battery enclosures

BATTERY RUNTIMES
50% LOADING:
INTERNAL RUNTIME: 8 kW: 23 minutes / 12 kW: 13 minutes
EXTENDED BATTERY CAPABILITY: 8 kW: 120 minutes / 12 kW: 76 minutes
100% LOADING:
INTERNAL RUNTIME: 8 kW: 9 minutes / 12 kW: 4.7 minutes
EXTENDED BATTERY CAPABILITY: 8 kW: 55 minutes / 12 kW: 34 minutes

DIMENSIONS
UPS: HEIGHT: 10.3 in/267 mm (6U) / WIDTH: 17.4 in/442 mm / DEPTH: 28.4 in/720 mm
EBM: HEIGHT: 5.2 in/132 mm (3U) / WIDTH: 17.2 in/437 mm / DEPTH: 26 in/660 mm

WEIGHT
CHASSIS WEIGHT WITHOUT BATTERIES OR ELECTRONICS: 80 lb/36 kg
CHASSIS WEIGHT WITH BATTERIES AND ELECTRONICS: 307 lb/140 kg
UPS WEIGHT WITHOUT BATTERIES: 135 lb/61 kg
UPS WEIGHT WITH 2 STRINGS OF BATTERIES: 307 lb/140 kg
UPS WEIGHT WITH 1 STING OF BATTERIES: 218 lb/99 kg (5 kW UPS only)
EBM SHIPPING WEIGHT: 170 lb/77 kg

GENERAL CHARACTERISTICS
HEAT DISSIPATION (HE MODEL):
– 371 watts/1266 BTU/hr at 100% rated load (12 kW)
– 264 watts/903 BTU/hr at 100% rated load (8 kW)
– 210 watts/707 BTU/hr at 100% rated load (5 kW)
COOLING: Fan cooled, temperature microcomprocessor monitored / Front air entry, rear exhaust
AUDIBLE NOISE, NORMAL OPERATION: <60 dBA at 1 meter ALTITUDE BEFORE DERATING:1000 meters (3300 ft ASL)
