EATON COMMERCIAL BACKUP POWER UPS

Eaton Commercial 9155 Single Phase Battery Backup UPS, Eaton Industrial 9155 Single Phase Battery Backup UPS

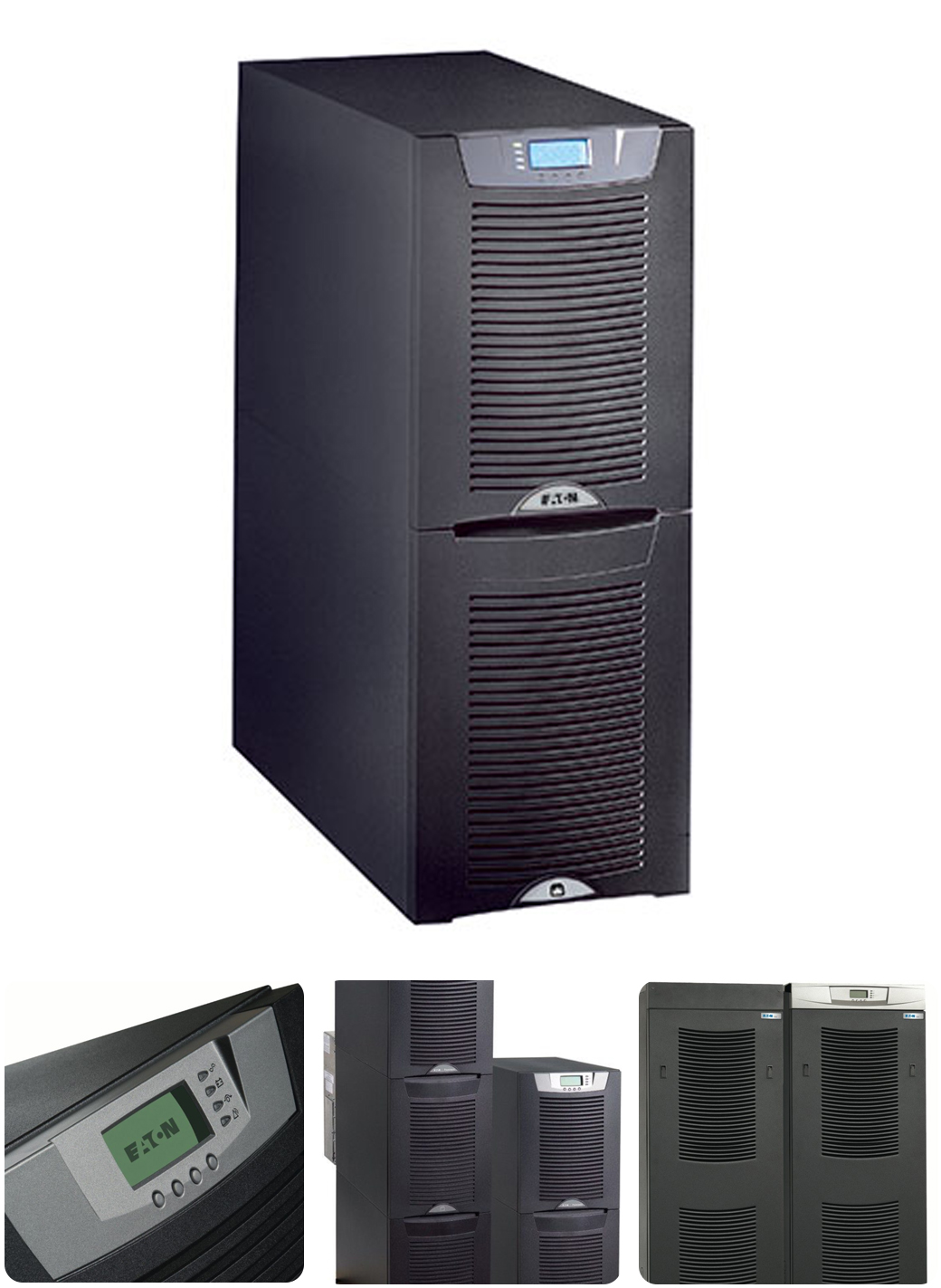

Eaton 9155 UPS (formerly the Powerware 9155 UPS) is a single-phase, double-conversion online UPS. Providing 5,500 watts per square foot with a 0.9 output power factor, the 9155 UPS helps get the most value out of your floor space and data center operating budget. This UPS offers endless opportunities to build out the backup power system you need with an optional maintenance bypass switch, network card and relay communications outputs, and Eaton’s patented HotSync technology that makes it easy to add redundancy or capacity.

>> Data and power protection >> Outperform far larger units in a smaller space >> Small businesses applications

POWER RATING
8-15 kW

VOLTAGE
200-240 VAC

FORM FACTOR
Tower

AJPS IS NOW FEATURING EATON HIGH QUALITY UNINTERRUPTIBLE POWER SUPPLIES FOR OUR COMMERCIAL CUSTOMERS

Eaton Commercial 9155 Backup Power Technology

The Eaton 9155 UPS is a split-phase, double-conversion online UPS available in 8 kVA, 10 kVA, 12 kVA, and 15 kVA setups. Whatever the voltage, you will get a remarkable amount of power at a high efficiency level, providing a lower total cost of ownership than similar units. 5,500 watts are provided per square foot, protecting more equipment per dollar spent than the competition.

AJPS_EatonUPS_Commercial_LandingPage_SideImage-01

Search By Phase

Split Phase:
9155 UPS | 9355 UPS | 93PM UPS | 9PXM UPS

Search By Form Factor

Desktop
3S UPS | 5S UPS

Facility Level
93PM UPS

Rackmount
5P UPS | 5PX UPS | 9PX UPS | 9PXM UPS | Blade UPS

Wallmount:
5P UPS

Search By Power Rating

0-1 kVA:
3S UPS | 5S UPS | 5SC UPS | 9PX UPS | 9SX UPS

41-80 kVA:
93E UPS | 93PM UPS | 9PHD Marine UPS | Blade UPS | Emergency Lighting UPS

81-160 kVA:
93PM UPS | 9PHD UPS | Emergency Lighting UPS

161-400 kVA:
93PM UPS | 9PHD UPS | Emergency Lighting UPS

AJPS_EatonUPS_Commercial_LandingPage_SideImage-02

AJPS_EatonUPS_Commercial_LandingPage_SideImage-03

813-996-2583 (click to call)
1-800-AJPOWER Toll Free

Nigel Pearson
– VP Sales & Marketing –
Nigel@ajpowersupply.com

Mike Henderson
– Director, Strategic & International Sales –
MikeH@ajpowersupply.com

REDUCES TOTAL COST OF OWNERSHIP

• More real power in less space with 0.9 output power factor
• Scalable with 8-10 kVA and 12-15 kVA capacity upgrades
• Sleek tower design that includes internal batteries

MAXIMIZES FLEXIBILITY

• Power distribution module options
• Split phase architecture
• Enables paralleling of up to four UPSs for additional capacity and redundancy

MAXIMIZES AVAILABILITY AND RELIABILITY

• Extended battery runtime options
• Optional bypass to service UPS without disturbing the load
• Connectivity and software options for remote monitoring

General Characteristics
Input
Output
Battery
Resources

HIGHLIGHTS
POWER RATING: 8-15 kVA at 0.9 power factor
VOLTAGE: 200-240 VAC with neutral or with optional input transformer
FREQUENCY: 50/60 Hz
TOPOLOGY: Double conversion
CONFIGURATION: Compact Tower

UPS MODEL SPECS
MODELS (8-15 KVA)
– 9155, 2-high with (1) battery module / DIMENSIONS (H x W x D, INCHES): 32.2 x 12 x 33.7 / WEIGHT: 352
– 9155, 3-high with (2) battery module / DIMENSIONS (H x W x D, INCHES): 47.8 x 12 x 33.7 / WEIGHT: 590
– 9155, 3-high with (1) battery module and (1) transformer module / DIMENSIONS (H x W x D, INCHES): 47.8 x 12 x 33.7 / WEIGHT: 558

GENERAL
TOPOLOGY: Double-conversion
COLOR: Black
RATING (VA/WATTS): Up to 15000/13500
DIAGNOSTICS: Full system self-test at startup
UPS BYPASS: Automatic on overload or UPS failure
WARRANTY: Two-year factory warranty
CONTENTS (SHIPS WITH THE FOLLOWING ITEMS): 1 ready-to-go UPS, software suite CD, user guide
EFFICIENCY: Up to 91%

COMMUNICATIONS
USER INTERFACE: LCD Display with blue backlight
LEDS: (4) LEDs for notice and alarm
AUDIBLE ALARMS: Yes
COMMUNICATION PORTS: (1) RS-232, (1) relay contact, (1) REPO, (2) environmental input
COMMUNICATION SLOT: (2) X-Slot communication bays
POWER MANAGEMENT SOFTWARE: Bundled Software Suite CD

ENVIRONMENTAL & STANDARDS
AUDIBLE NOISE: <53dBA at 1 meter (noise less room) typical OPERATING TEMPERATURE: 10°C to +40°C, +45°C with 7.5% derating; Batteries recommended max. +25°C STORAGE TEMPERATURE: -15°C to +25°C RELATIVE HUMIDITY: 0-95%, non condensing
INPUT CHARACTERISTICS
CONNECTION: Hardwired – see manual for terminal block layout
FREQUENCY: 50/60 Hz (45 to 65 Hz)
FREQUENCY RANGE: 45 to 65 Hz
INPUT POWER FACTOR: P.F >0.99 typical, >0.96 frequency converter
GENERATOR COMPATABILITY: Yes
OUTPUT CHARACTERISTICS
OUTPUT VOLTAGE: 100/200, 110/220, 120/240 Vac 180° phase displacement; 120/208, 127/220 Vac 120° phase displacement
OUTPUT RECEPTACLES: (1) PDM
ON UTILITY VOLTAGE REGULATION: Output voltage regulation ±1% Static; ±5% dynamic at 100% resistive load change
ON BATTERY VOLTAGE REGULATION: Output voltage regulation ±1% Static; ±5% dynamic at 100% resistive load change
OVERLOAD CAPACITY: 150% for 5 sec / 125% for 1 min (online), 110% for 10 min
VOLTAGE WAVE SHAPE (ON BATTERY): Sine Wave
TRANSFER TIME : 0 ms
BATTERY TYPE
BATTERY MANAGEMENT: ABM technology
BATTERY TYPE: 9Ah, sealed, lead-acid, maintenance-free
BATTERY REPLACEMENT: Field-replaceable
START ON BATTERY: Allows start of UPS without utility input
RECHARGE TIME: Internal battery: approximately 3 hours to 80% usable capacity at nominal line voltage after full load discharge External battery: no more than 10x discharge time to 90% usable capacity at nominal line voltage after full load discharge

CERTIFICATIONS
SAFETY CERTIFICATIONS: UL1778 5th Edition, CSA C22.2 No. 107.3-14, NOM-NYCE
EMC COMPLIANCE: 47 CFR Part 15/ICES-003 Class A
QUALITY: ISO 9001:2015, ISO 14001:2004
SURGE ANSI C62.41 Category B3, IEC 61000-4-5
MARKINGS: cULus, NOM-NYCE
Coming soon!
Please, come back later or Contact us

Backup Power Special Features

AJPS_EatonUPS_Commercial_LandingPage_Section-1-01

User-replaceable Battery

Easy to remove, you can replace the internal battery once it ages to extend the service life of your rack mount, wall mount, tower and compact UPS.

AJPS_EatonUPS_Commercial_LandingPage_Section-1-02

Three-year Warranty

A three-year warranty is available for mostly UPS products purchased in the United States and Canada. Please, contact our reps for more information.

AJPS_EatonUPS_Commercial_LandingPage_Section-1-03

QR Code Scan-ready

Scan the QR Code on the front of the UPS with your cell phone device to quickly access the installation, user manual and any other special feature and information.

AJPS_EatonUPS_Commercial_LandingPage_Section-1-04

User-replaceable Battery

The easy-to-navigate interface and user friendly menu allows you to view detailed information and customize all UPS settings at the push of a button.

LONGER BATTERY LIFE | SAVE SPACE AND TIME | REDUCED FOOTPRINT | FASTER RECHARGE

Lithium-ion Batteries are Now Available!

AJPS_EatonUPS_Commercial_LandingPage_Section-2-01

Lithium-ion batteries last longer and recharge faster, saving time, money and reducing risk throughout the lifecycle of the uninterruptible power systems (UPS). While valve regulated lead acid (VRLA) batteries have long been the industry choice for UPSs, new lithium-ion batteries offer these additional benefits while still meeting required backup runtime and are a safe and stable alternative battery option for UPS applications. Transform your power infrastructure with lithium-ion batteries.

AJPS_EatonUPS_Commercial_LandingPage_Section-2-02

AJPS_EatonUPS_Commercial_LandingPage_Section-2-03

AJPS_EatonUPS_Commercial_LandingPage_Section-2-04

3-year UPS & Battery Warranty

COMPREHENSIVE COVERAGE, PROFESSIONAL AND CUSTOMIZED SUPPORT FOR YOUR UPS AND BATTERIES

A three-year warranty is available for the following UPS products purchased in the United States and Canada. In addition to UPS products, our PDU product line is also covered by a three-year warranty. Please note that you will need the serial number located on the product label of the UPS.

CURRENT PRODUCTS WITH 3-YEAR WARRANTY

AJPS_EatonUPS_Commercial_LandingPage_Section-3-01

CONTACT OUR REPRESENTATIVES FOR MORE INFORMATION

AJPS_EatonUPS_Commercial_LandingPage_Section-3-02

High Quality, Reliable Eaton Commercial 9155 Single Phase Battery Backup UPS Technology

AJ’s Power Source Inc. is a leading-edge supplier for the Eaton Commercial 9155 Single Phase Battery Backup UPS. The Eaton 9155 UPS (formerly the Powerware 9155 UPS) is a single-phase, double-conversion online UPS. Providing 5,500 watts per square foot with a 0.9 output power factor, the 9155 UPS helps get the most value out of your floor space and data center operating budget.

Eaton Commercial 9155 Single Phase Battery Backup UPS. Powerful Tower Three-Phase Double-Conversion UPS

This UPS offers endless opportunities to build out the backup power system you need with an optional maintenance bypass switch, network card and relay communications outputs, and Eaton’s patented HotSync technology that makes it easy to add redundancy or capacity.

Most of the Eaton Commercial 9155 Single Phase Battery Backup UPS family of products have the new Lithium-ion batteries to last longer and recharge faster

The Eaton Commercial 9155 Single Phase Battery Backup UPS even offers flexibility in battery types with two models offering lithium-ion batteries. Complete your battery backup power solution by pairing the UPS with Gigabit Network card–the first in the industry to comply with the UL and IEC cybersecurity standards–and the Intelligent Power Management (IPM) platform for seamless management of your connected equipment.

Please, call us today! 813-996-2583 for more information about our Eaton Commercial 9155 Single Phase Battery Backup UPS

AJPS has always provided fast, reliable, and enthusiastic service to our customers during development, production, and follow-on support. To learn more about our Eaton Commercial Battery Backup Power UPS, please do not hesitate to call our office today at (813) 996-2583 or Contact Us by email.
