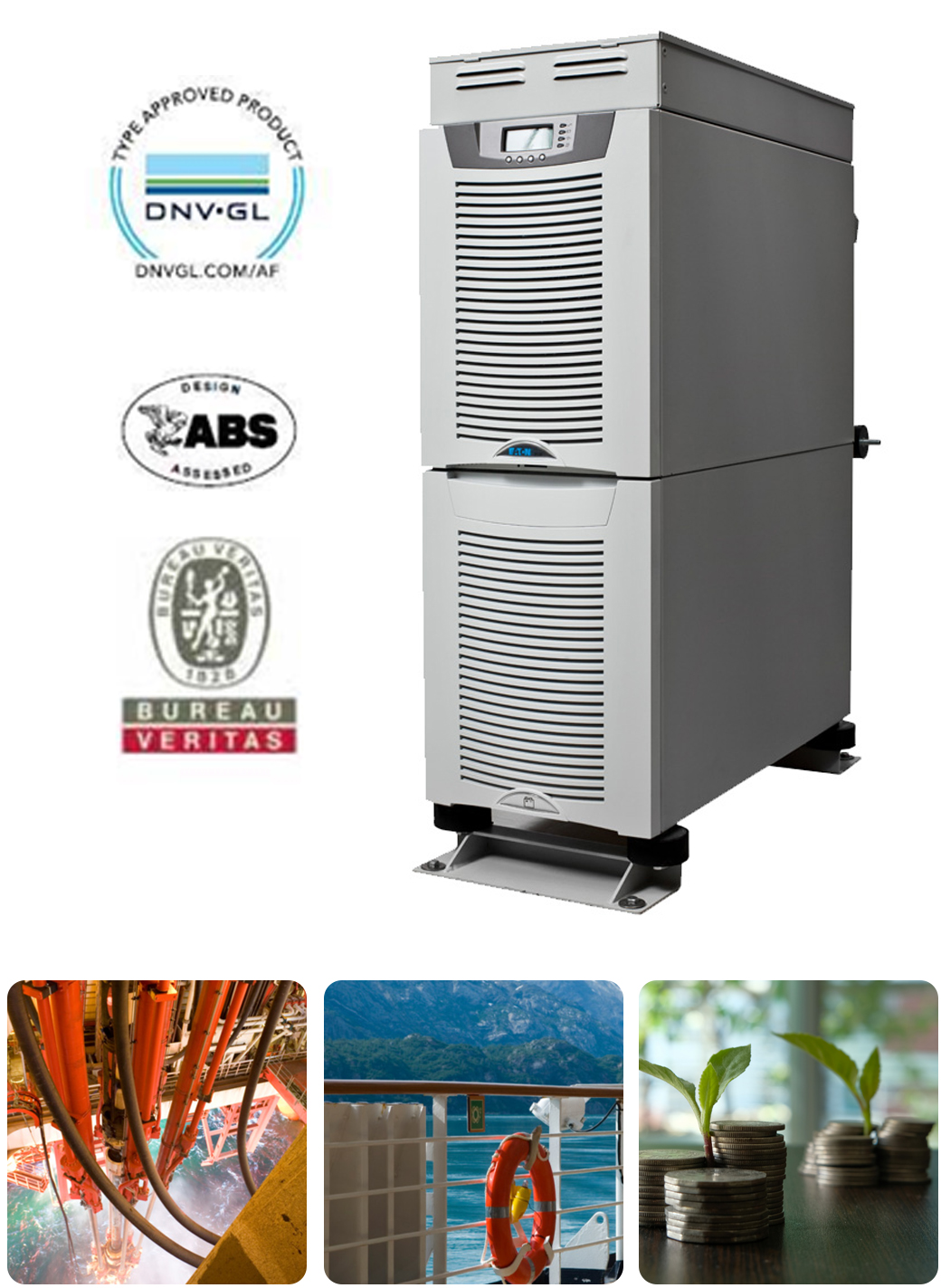

Eaton 9155 Marine UPS is DNV-GL type approved, BV type approved, and ABS design assessed (up to 15 kVA). With its compact design and internal batteries, the Eaton 9155 Marine UPS is ideally suited to applications requiring high power density and a small footprint.
>> Shipboard applications >> Power infrastructure solutions >> Marine & Offshore applications
Reliable backup is further enhanced with Advanced Battery Management (ABM) and by using Eaton’s innovative three-stage battery charging system, which significantly extents battery lifetime. What’s more, the possibility for an internal transformer or batteries eliminates the need for costly and space-consuming external cabinets and cabling.
Single Phase:
3S UPS | 5P UPS | 5PX UPS | 5S UPS | 5SC UPS | 9155 Marine UPS | 9155 UPS | 9PX UPS | 9PXM UPS | 9SX UPS | Emergency Lighting UPS | Ferrups FX UPS | Ferrups UPS
Three Phase:
9355 UPS | 93E UPS | 93PM UPS | 9PHD Marine UPS | Blade UPS | Emergency Lighting UPS
End of Row
9155 UPS | 9355 UPS | 93E UPS | 93PM UPS | 9PXM UPS | Blade UPS
Facility Level
93PM UPS
Rackmount
5P UPS | 5PX UPS | 9PX UPS | 9PXM UPS | Blade UPS
Tower:
5P UPS | 5PX UPS | 5SC UPS | 9155 Marine UPS | 9155 UPS | 9355 UPS | 93E UPS | 93PM UPS | 9PHD Marine UPS | 9PX UPS | 9PXM UPS | 9SX UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
Wallmount:
5P UPS
0-1 kVA:
3S UPS | 5S UPS | 5SC UPS | 9PX UPS | 9SX UPS
1-3 kVA:
5P UPS | 5PX UPS | 5S UPS | 5SC UPS | 9PX UPS | 9SX UPS
5-6 kVA:
9PX UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
7-12 kVA:
9155 Marine UPS | 9155 UPS | 9355 UPS | 9PX UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
13-19 kVA:
9155 Marine UPS | 9155 UPS | 9355 UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS | Ferrups FX UPS | FERRUPS UPS
20-40 kVA:
9155 Marine UPS | 9355 UPS | 93E UPS | 93PM UPS | 9PHD Marine UPS | 9PXM UPS | Blade UPS | Emergency Lighting UPS
41-80 kVA:
93E UPS | 93PM UPS | 9PHD Marine UPS | Blade UPS | Emergency Lighting UPS
81-160 kVA:
93PM UPS | 9PHD UPS | Emergency Lighting UPS
161-400 kVA:
93PM UPS | 9PHD UPS | Emergency Lighting UPS
Nigel Pearson
– VP Sales & Marketing –
Nigel@ajpowersupply.com
Mike Henderson
– Director, Strategic & International Sales –
MikeH@ajpowersupply.com
The compact design of Eaton 9155 Marine UPS, with internal batteries, saves valuable space in ship and rig installations.
It has the industry’s highest availability and reliability, with HotSync paralleling technology that enables paralleling of up to four UPSs for additional capacity or redundancy.
Innovative technology and design make Eaton 9155 Marine UPS a truly sustainable solution, with high system efficiency and power density.
HIGHLIGHTS
POWER RATING: 8 – 30 kVA
VOLTAGE: 220 – 230 – 240 V
FREQUENCY: 50/60 Hz
TOPOLOGY: Online
CONFIGURATION: Tower
UPS MODEL SPECS
MODELS (8-15 KVA)
– 9155, 2-high with (1) battery module / DIMENSIONS (H x W x D, INCHES): 32.2 x 12 x 33.7 / WEIGHT: 352
– 9155, 3-high with (2) battery module / DIMENSIONS (H x W x D, INCHES): 47.8 x 12 x 33.7 / WEIGHT: 590
– 9155, 3-high with (1) battery module and (1) transformer module / DIMENSIONS (H x W x D, INCHES): 47.8 x 12 x 33.7 / WEIGHT: 558
GENERAL
Efficiency in double conversion mode (full load): 92% (without transformer)
Efficiency in double conversion mode (half load): 90% (without transformer)
Distributed paralleling with Hot Sync technology: 4
Field upgradeable:yes
Inverter/rectifier topology transformer-free IGBT with PWM
Audible noise: < 50 dB
Colour: RAL 7035
INPUT CHARACTERISTICS
Nominal voltage rating (configurable): 380, 400, 415 V 50/60 Hz
With transformer: e.g. 230, 400, 440, 480, 690 V (internal) e.g. 230, 440, 480, 690 V (external)
Input voltage range: Low -20% at 100% load/-50% at 50% load without battery discharge; High +10%/max +20%
INPUT CHARACTERISTICS
Input frequency range: 45-65 Hz
Input power factor: 0,99
Input ITHD: less than 4,5%
Soft start capability: Yes
Internal backfeed protection: Yes
OUTPUT CHARACTERISTICS
8, 10, 12, 15 kVA
Nominal voltage rating (configurable): 380, 400, 415V 50/60 Hz
With transformer: e.g. 230, 400, 440, 480, 690 V (external)
Output UTHD: <3% (100% linear load); <5% (reference non linear load)
Output power factor: 0,9 (e.g. 9 kW at 10 kVA)
Permitted load power factor: 0,7 lagging - 0,8 leading
OUTPUT CHARACTERISTICS
20, 30 kVA
Nominal voltage rating (configurable): 220, 230, 240V 50/60 Hz
With transformer: e.g. 230, 440, 480, 690 V
Output UTHD: <3% (100% linear load); <5% (reference non linear load)
Output power factor: 0,9 (e.g. 27 kW at 30 kVA)
Permitted load power factor: 0,7 lagging - 0,8 leading
BATTERY TYPE
8, 10, 12, 15 kVA
Type: Maintenance-free VRLA batteries, NiCd
Charging method: ABM technology or Float
Temperature compensation: Optional
Battery nominal voltage (lead-acid): 384 V (32×12 V, 192 cells)
Charging current / Model: Default 3 A *Max 30 A
*May be limited by maximum UPS input current rating
BATTERY TYPE
20, 30 kVA
Type: Maintenance-free VRLA batteries, NiCd
Charging method: ABM technology or Float
Temperature compensation: Optional
Battery nominal voltage (lead-acid): 3432 V (36×12 V, 216 cells)
Charging current / Model: Default 3 A *Max 60 A
*May be limited by maximum UPS input current rating
For more information about this product, please click HERE download the Brochure Specs
Easy to remove, you can replace the internal battery once it ages to extend the service life of your rack mount, wall mount, tower and compact UPS.
A three-year warranty is available for mostly UPS products purchased in the United States and Canada. Please, contact our reps for more information.
Scan the QR Code on the front of the UPS with your cell phone device to quickly access the installation, user manual and any other special feature and information.
The easy-to-navigate interface and user friendly menu allows you to view detailed information and customize all UPS settings at the push of a button.
Lithium-ion batteries last longer and recharge faster, saving time, money and reducing risk throughout the lifecycle of the uninterruptible power systems (UPS). While valve regulated lead acid (VRLA) batteries have long been the industry choice for UPSs, new lithium-ion batteries offer these additional benefits while still meeting required backup runtime and are a safe and stable alternative battery option for UPS applications. Transform your power infrastructure with lithium-ion batteries.
A three-year warranty is available for the following UPS products purchased in the United States and Canada. In addition to UPS products, our PDU product line is also covered by a three-year warranty. Please note that you will need the serial number located on the product label of the UPS.
AJ’s Power Source Inc. is a leading-edge supplier for the Eaton Commercial 9155 Marine Shipboard UPS. The Eaton 9155 Marine UPS is DNV-GL type approved, BV type approved, and ABS design assessed (up to 15 kVA).
With its compact design and internal batteries, the Eaton 9155 Marine UPS is ideally suited to applications requiring high power density and a small footprint.
The Eaton Commercial 9155 Marine Shipboard UPS even offers flexibility in battery types with two models offering lithium-ion batteries. Complete your battery backup power solution by pairing the UPS with Gigabit Network card–the first in the industry to comply with the UL and IEC cybersecurity standards–and the Intelligent Power Management (IPM) platform for seamless management of your connected equipment.
AJPS has always provided fast, reliable, and enthusiastic service to our customers during development, production, and follow-on support. To learn more about our Eaton Commercial Battery Backup Power UPS, please do not hesitate to call our office today at (813) 996-2583 or Contact Us by email.
