The VERSA-PORTABLE SeriesTM is a Commercial Portable AC to DC and DC to DC High Output Power Converter Designed for Medical Equipment, LED Signs, Computers and more.
IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance
UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |Temperature Control | Environment
TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |Electrical & Fire Safety
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

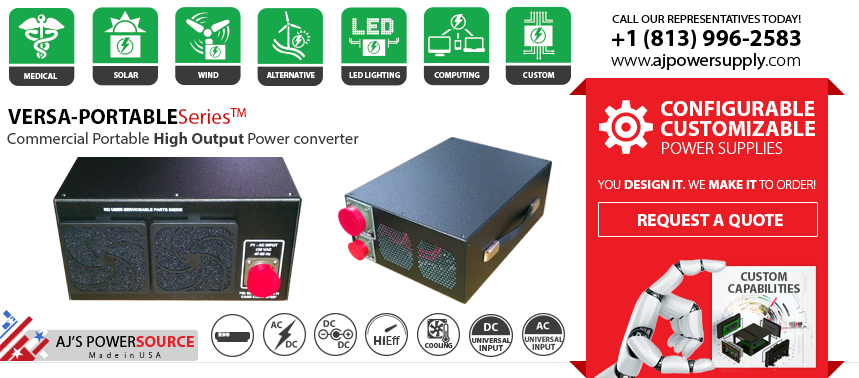

Commercial Portable AC to DC and DC to DC High Output Power Supply
The VERSA-PORTABLE SeriesTM is a Commercial Portable AC to DC and DC to DC High Output Power Converter Designed for Medical Equipment, LED Signs, Computers and more.
The VERSA-PORTABLE SeriesTM family of products provides reliable, cost effective AC to DC and DC to DC Portable power solutions. The VERSA-PORTABLE SeriesTM offers a highly reliable solution while providing shortened lead times in a configurable design.
The VERSA-PORTABLE SeriesTM is an AC to DC or DC to DC power system designed for power conversion needs on the move or in destination settings that need to be altered frequently. The all aluminum chassis allows for many different DC output voltage configurations at power levels up to 3000 watts. The on/off switch is also resettable breaker for safety against over current situations. The field replaceable dust covers allow the local user to easily remove and clean. The side handle allows for ease of carrying and the rubber feet to help prevent the power Supplies from sliding around in your application. Applications Include: Medical Equipment, LED Signs, Computers and more.
This new VERSA-PORTABLE SeriesTM is an easily transportable, Commercial compliant power Supplies system built for harsh environments and portable equipment on the move. These units are available to the Commercial Market to provide clean power conversion on the move.
Highlights
• Universal AC Input Voltages (100-264VAC)
• Universal DC Input Voltage (call for availability)
• Wide variety of DC output voltages
• Power Ranges from 250 – 3000 Watts
• High Efficiencies
• High Temperature Ranges
• Standard mechanical enclosures designed for all environments
• Configurable for short lead times
• Industry standard connection points (can be modified)
• Cooling: Internal Air-Flow Designs with dust covers
• Very Low Weight
-
AC Input Voltage: 100-264VAC
DC Input Voltage: 18-36VDC (9-36 VDC Available)
DC Output: Multiple outputs
Operating Temperature: -20C to 60C (max)
Storage Temperature: -20C to 70C(max)
Overload Protection: 110 to 180% of full load
Total Output Power: 250-3000 Watts (depending on input voltage)
Efficiency: Up to 93%
Line Regulation: 0.2% for 10% Line ChangeLoad Regulation: < +/- 1% Ripple: 2% of Output Voltage
Current Limit: Over Current & Short Circuit Protection
Physical Dimensions: Depends on Power Output
Connector: Circular Connectors (can be modified)
Weight: Est. 4-15LBS
Over Voltage Protection: Depends on Output Voltage
Set Point Accuracy: < +/- 1% -
