The Industrial Sealed 600W IP68 IP67 IP65 AC DC Power Supply series is an
ultra-high efficiency family of Industrial Sealed Power Supplies.
IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance
UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |Temperature Control | Environment
TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |Electrical & Fire Safety
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

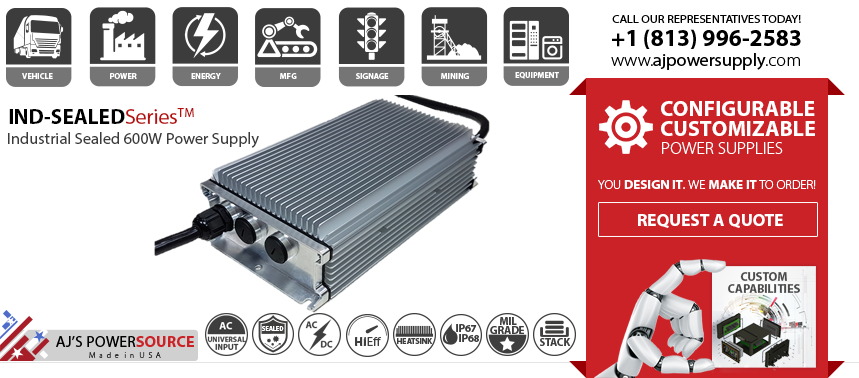

Our Industrial Sealed IP68 IP67 IP65 Power Supply are an environmentally sealed, ultra-high efficiency family of Industrial Power Supplies
The INDUSTRIAL-SEALED SeriesTM includes Industrial IP68 IP67 IP65 rated 600W Power Supplies that provide High Reliability with industrial availability and affordability in a product that performs under extreme conditions, even submerged under water!
Our Industrial Sealed IP68 IP67 IP65 Power Supply provides reliable, cost effective AC to DC Sealed power conversion. The INDUSTRIAL-SEALED SeriesTM offers a highly reliable standard industrial off the shelf solution while providing short lead times in a rugged design. The INDUSTRIAL-SEALED SeriesTM from AJPS operates from wide range AC input (85 – 305VAC) as well as DC and is available in standard output voltages of 24 and 48 VDC. Each product is Hermetically Sealed and carries an IP68 IP67 IP65 rating for ingress of dirt/dust and water. The products are cooled via natural conduction/convection (no air flow needed) supported by ultra High Efficiency up to 94%. Units are parallelable for higher power. Industrial Weatherproof Power Supply, Industrial IP68 IP67 IP65 Power Supply, Industrial Custom Weatherproof Power Supply are our specialty.
Highlights
- Sealed enclosure, IP68 IP67 IP65 Ingress Protection
- High Efficiency (up to 94%)
- Low stand-by power consumption (< 0.3 W)
- Universal input voltage range (85 – 305 VAC, 50/60, 400Hz)
- DC input voltage available
- Input inrush current limiting (<30 A)
- 600W max sustained power (800 W peak power)
- Parallelable for higher power

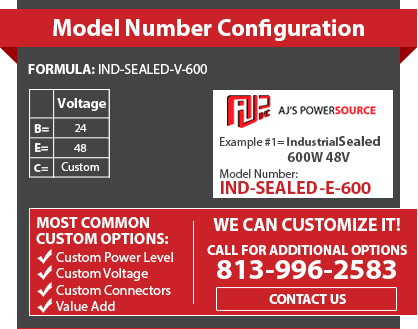

- 24 and 48 VDC standard output voltages
- Active PFC, EN61000-3-2 compliant (Class C, >25% load)
- Low earth / touch leakage current
- Over temperature, OV, OC and SC protections.
- Stand by +5 V, 1.5 A output.
- Remote On / Off signal
-
Input Voltage: 85 VAC to 305 VAC / 170 VDC to 300 VDC
Efficiency: up to 94%
Hold-Up Time: 16ms (call for 50ms option)
Operating Temperature: -30 to +70C
Storage Temperature: -40 to +85C
Load Regulation: +/-2%Line Regulation: +/-0.1%
Thermal Protection: Shut down, latch off
Humidity: 90% operational, non-condensing
Altitude: 50,000 ft (15,000 m)
OVP %: 120 to 145% (%V) -
