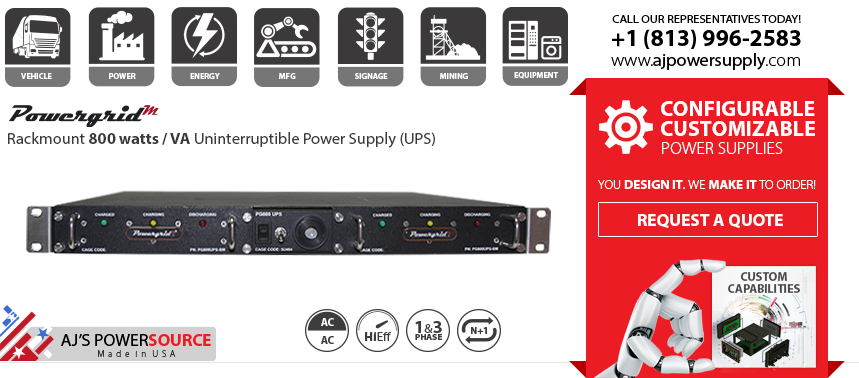

PowergridM – Is a rugged 800 Watts / VA full double conversion Rack mount
Uninterruptible Power Supply UPS in a 1 Unit rugged chassis that is less than 26 pounds.
IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance
UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |Temperature Control | Environment
TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |Electrical & Fire Safety
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Industrial Rugged 800 watts Uninterruptible Power Supply UPS
Industrial Rugged 800 watts UPS is a Full Double Conversion 19” Rackmount Uninterruptible Power Supply in a 1U (1.73” High) Rugged Chassis That is 21.75” in Length Weighing Less Than 26 Pounds.
The PowergridM technology is implemented with a Load Balancing Interconnect (LBI) design that allows up to four (4) of the PowergridM 800 units to be interconnected to create an 800, 1600, 2400, or 3200 Watts Uninterruptible Power Solution. The LBI interconnects the inverter and power circuits in each unit allowing them to work together to provide a fully meshed, load balanced and uninterruptible PowergridM for the attached systems. Each attached UPS will provide its share of the demanded power while ensuring frequency and power synchronization with its attached neighbors.
Highlights
• Ruggedized 1U 800 Watts/VA weighing less than 26 Lbs.
• Stack and Interconnect Design 800/1600/2400/3200 Watts.
• Dual Hot Swap Battery. 3 Lbs Each – 9+ Min Hold Time.
• AC/DC Input Connections with Auto Sensing & Switching.
• Dual Computer Controlled Inverter N+1 Design.
• Over Voltage Capacity for In-Rush and Startup Demands.
• Over Voltage & Temperature Protection Circuits.
• Based Network Connectivity for Monitoring & Reporting.
• Primary Power Bypass Switch & Audible Power Loss Alarm.
• Lightning Protection with Safety Ground Connection.
Special Features
1U 800 watts UPS – Rackmount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 1000 watts UPS – Rackmount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Rackmount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Rackmount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
2U 3000 VA UPS – Rackmount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Rackmount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
-
AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz.
(Single, Dual, and Three Phase options available).
DC Input Voltage: 22 – 30 VDC. (MIL-STD-1275 Compliant).
Battery Backup: 9 minutes at 25C, 80% Load.
Available Output Voltages: 120 or 230 VAC True Sine wave.
Output Frequency: 50Hz or 60Hz.
Harmonic Distortion: <2% with resistive load. • Output Power: 800 Watts. Efficiency: 80%.
Startup Time: <30 Seconds. Status Monitoring & Reporting: SNMP.Physical Dimensions: 1.73”H/17.1”W/21.75”D.
Cooling: Rear panel based internal airflow.
Weight: 25 Lbs.
Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating .
Temperature: – 20 to +50C.
Humidity: 0-95% non-condensing.
Fungus: In accordance with MIL-STD-810G.
Sand & Dust: MIL-STD-810G (with optional filters).
Vibration: MIL-STD-810G – Test Reports Available.
Functional Shock: MIL-STD-810G – Test Reports Available. -
