VME 6U Industrial Pluggable compliant universal AC input 400 watt 6 channel plug-in power supply for air cooled VME systems.

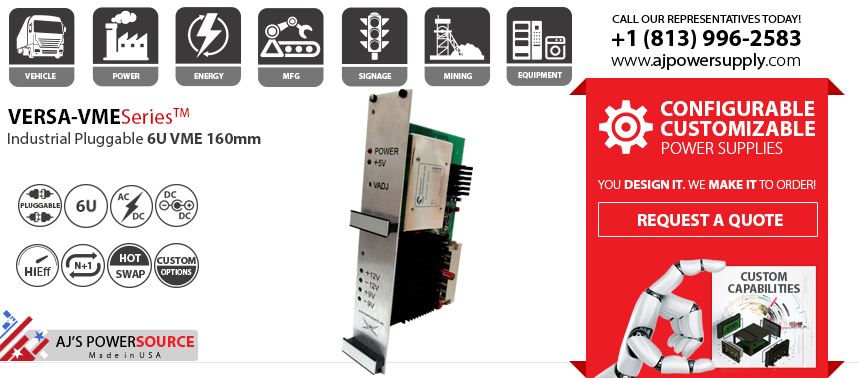

The VERSA-VME SeriesTM Is a 6U Industrial Pluggable Power Supply 160mm AC to DC and DC to DC Hot Swappable, N+1 and High Efficiency Power systems.
The 6U VME features a mission critical wide temperature range at high power on a 1 inch pitch. Input range is 85-264 VAC, 47-400 Hz. This 6U Unit can be special ordered to support high current single channel applications. The 6U Industrial Pluggable offers current sharing with up to four power supplies in a system for outputs of 12V, 5V and 3.3V.
Models are available for air cooled, conduction to bulkhead cooled, and conduction to wedge lock cooled applications and configurations. The 6U 160mm Pluggable is designed to be compliant with MIL-STD-461, MIL-STD-704F and MIL-STD-810F. The AJPS Industrial Pluggable VME 6U Rugged System measures voltage, current and temperature on each rail for intelligent monitoring and protective control of critical power supply performance parameters.
Highlights
• Custom Built For Each Application.
• Universal AC Input.
• Power Factor Correction.
• Capable of 1 to 8 Outputs.
• Output Voltages from 1.8V – 48VDC.
• .8” to 2.4” Front Plate Width
• Over Temperature Protection.
• No Minimum Load.
• Over Voltage Protection.
• Vertical Air Flow Design.
-
AC Input Voltage: VAC 85-264, 47-63Hz
DC Input Voltage 12, 24 , 48 , 120 – 370VDC
Input Current: Amps / Output Wattage / Output Voltage x 1.25 = Input Current
Inrush Current: 0 – 50 Amps
Efficiency: AC – DC 75 % Typical / DC – DC 85% Typical
Power Factor Correction: Standard on all Models
Output Power: 250 – 1200 Watts Depending on Customer Configuration
Output Load Regulation: 1% Standard and <3% maximum Output Line Regulation: <1%Ripple and Noise: 2% pk – pk
Hold Up Time: >16 mS at 80% Load ( AC input only )
Remote Sense: Available on Outputs over 100 Watts
Operating Temperature: -40 to 100ºC Available
Thermal Protection: Over Temperature Shut down on each Output
Storage Temperature: -40 to 100ºC on most models
Humidity: 5-95 % Non-Condensing
Altitude: 10,000 Ft
Over Voltage Protection: <150% of Rated Output -
