Industrial Battery Expansion BPM 24/28 VDC

The PG-BXM-BPM24 is a rugged Rackmount 24V Battery Expansion Module
designed to augment the PowergridM 800 Watts / VA Standalone UPS.

IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance

UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |
Temperature Control | Environment

TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |
Electrical & Fire Safety

* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

Side-Nav_Image-03

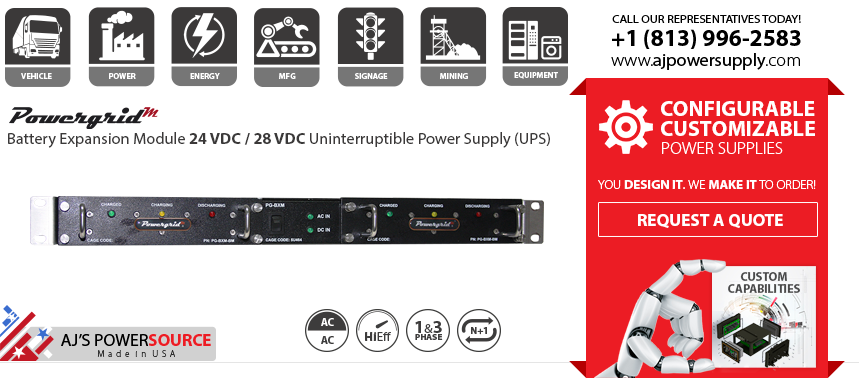

Industrial Battery Expansion Module – BackPlane 24 VDC / 28 VDC Output – Industrial Battery Backup System

The PG-BXM-BPM24 Is a Rugged Rackmount 24V Battery Expansion Module Designed to Augment the Powergrid M 800 Watts / Va Standalone UPS and Designed for Incorporation Into the PBM. The BXM Contains a Compliment of 6 Lithium Iron Phosphate Battery Packs Configured in the Cold Pak TM Design. Industrial Battery Backup System.

The BXM is a 1U (1.73” High) rugged chassis that is 21.75” in length weighing 20 pounds. The BXM provides an additional 27+ minutes of battery support for the PowergridM UPS BackPlane Module. The BXM can be plugged directly into the BackPlane Module in any available slot in support of a 800 Watts BackPlane UPS stack.

Highlights

• Connects to any available slot in the BPM.
• Hosts 2 removable Cold PakTM battery trays each containing 3 PowergridM battery modules.
• LED Operational Status Indicators for each battery tray.
• Same physical 1U size chassis package as the UPS.
• Each BXM provides a minimum of 27+ min extended power.
• MIL-STD 1275 compliant for VDC charging of batteries.

Special Features

Features-Table-1
StackingSystem-1

1U 800 watts UPS – Rackmount Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS

1U 1000 watts UPS – Rackmount Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS

1U 1500 VA UPS – Rackmount Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS

1U 1200 watts UPS – Rackmount Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS

2U 3000 VA UPS – Rackmount Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS

2U 2400 watts UPS – Rackmount Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
