VME 6U Commercial Pluggable compliant universal AC input 400 watt 6 channel plug-in power supply for air cooled VME systems.

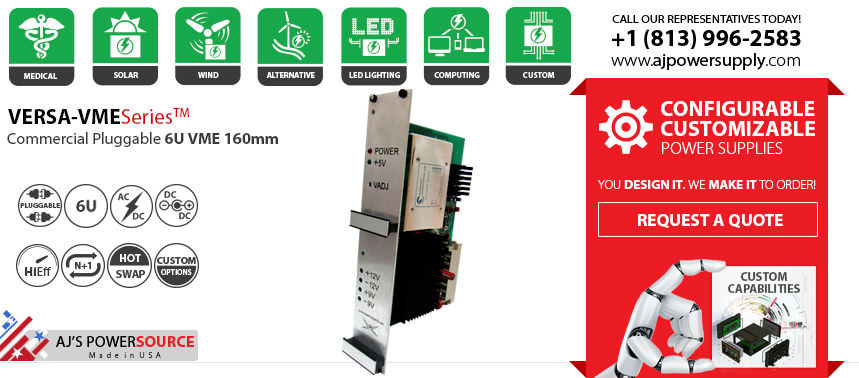

The VERSA-VME SeriesTM Is a 6U Commercial Pluggable Power Supply 160mm AC to DC and DC to DC Hot Swappable, N+1 and High Efficiency Power systems.
The 6U VME features a mission critical wide temperature range at high power on a 1 inch pitch. Input range is 85-264 VAC, 47-400 Hz. This 6U Unit can be special ordered to support high current single channel applications. The 6U Commercial Pluggable offers current sharing with up to four power supplies in a system for outputs of 12V, 5V and 3.3V.
Models are available for air cooled, conduction to bulkhead cooled, and conduction to wedge lock cooled applications and configurations. The 6U 160mm Pluggable is designed to be compliant with MIL-STD-461, MIL-STD-704F and MIL-STD-810F. The AJPS Commercial Pluggable VME 6U Rugged System measures voltage, current and temperature on each rail for intelligent monitoring and protective control of critical power supply performance parameters.
Highlights
• Custom Built For Each Application.
• Universal AC Input.
• Power Factor Correction.
• Capable of 4 Outputs.
• Output Voltages from 1.8V – 48VDC.
• 1.6” Front Plate Width.
• Over Temperature Protection.
• No Minimum Load.
• Over Voltage Protection.
• Vertical Air Flow Design.
-
AC Input Voltage: 85-264 VAC
Frequency: 47-63Hz
Input Current: Amps / Output Wattage / Output Voltage x 1.25 = Input Current
Inrush Current: 0 – 50 Amps
Efficiency: 75 % Typical
Isolation: 4,242 VDC
Output Power: 5 – 100 Watts Depending on Customer Configuration
Output Load Regulation: 1% Standard and <3% maximum Output Line Regulation: <1%Ripple and Noise: 2% pk – pk
Hold Up Time: 16 mS at 80% Load
Remote Sense: Available on Some Models
Operating Temperature: 0 to 60ºC (with 400LFM)
Thermal Protection: Over Temperature Shut down on each Output
Storage Temperature: -20 to 85ºC on most models
Humidity: 5-95 % Non-Condensing
Altitude: 10,000 Ft
Over Voltage Protection: <150% of Rated Output -
