The VERSA-POWER SeriesTM is a 3U Power Supply Providing Up to 10,000 Watts in a Dual Output.
Cost effective AC to DC and DC to DC rack mount power solutions.
IEEE Standards
Protection | Energy & Standby | System Reliability |
Operations & Safety | Maintenance
UL Standards
Health & Safety | Cybersecurity | Rain Nozzles |Temperature Control | Environment
TUV & CE Standards
Safety & Quality | OSHA and SCC regulation |Electrical & Fire Safety
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more

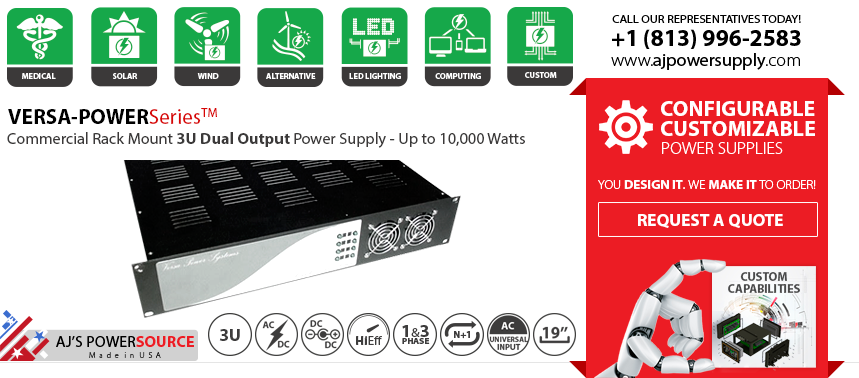

3U Commercial Grade Configurable Dual Output Rack Mount Power Supply. Designed for Commercial Rack Mount Applications In Single or Three Phase Options
The VERSA-POWER SeriesTM is a 3U Power Supply that Provides up to 10,000 Watts in a Dual Output. Standard Output voltages include 3.3V, 5V, 12V, 24V, 28V & 48V that can be adjusted to suit your need.
The VERSA-POWER SeriesTM family of products provides reliable, cost effective AC to DC and DC to DC Rack Mount power solutions. The VERSA-POWER SeriesTM offers a highly reliable solution while providing shortened lead times in a configurable design. The output power levels range from 0-10,000 watts in a 1U-3U standard 19” Rack Mount configuration. The universal AC input of 90-264VAC can be either single or three phase for your configuration. Standard output options are available with a factory adjustable +/-10% of 3.3V, 5V, 12V, 24V, 28V & 48V (custom output voltages are available). The front to back airflow allows for cooling of the power supply. The chassis is made of aluminum and is lightweight. The configurable design allows for short lead time and low cost solutions.
Highlights
• 3U 100 to 10,000 Watts Power Supply.
• Output Voltages: 3.3V, 5V, 12V, 24V, 28V & 48V.
• Universal VAC Input Voltage Range (90-264).
• Wide Input Frequency Range Available (47-440Hz).
• Single or Three Phase Options.
• High Efficiency Up To 90% Across All Voltages.
• Wide Operating/Non-Operating Temperature Range.
• Standard 19” Rack Mount Configurations.
• Internal N+1 Redundancy Options.
• Overvoltage/Overvoltage Protection.
• Over Temperature Protection.
• Shortened Lead Times.
• Configurable Power Levels & Voltages.
• Custom Options Available.
-
• Input Voltage – VAC – 90-264, 47-63Hz
• Efficiency – 85%-90% Typical
• Hold Up time – >16 mS @ 80% load
• Operating Temperature – 0 to 50°C standard
– Higher temperatures available
• Storage temperature – -20 to 60°C standard• Load regulation – 1% standard
• Line regulation – 2% standard
• Thermal protection – standard
• Voltage adjustment range ± 10%
• Voltage tolerance ± 2% standard -
