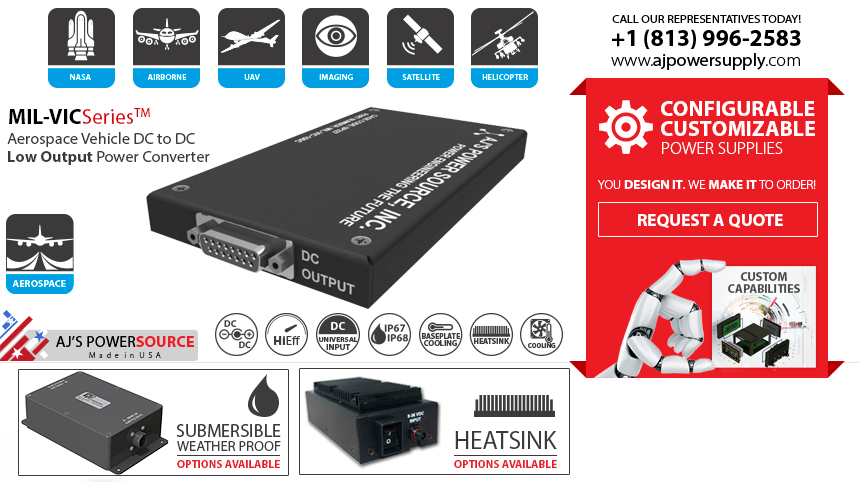

The AERO-VIC SeriesTM is a Aerospace Aircraft & Avionics DC to DC
Low Output Power Converter. Built for deployment and operations equipment.
MIL-STD-810F
Humidity | Altitude | Sand and Dust |
Shock and Vibration | Temperature
MIL-STD-461E
RE101 | RE102 | CE101 | CE102 | CE103
MIL-STD-882D
MIL-STD-1472F
MIL-STD-1474D
* Units are designed to meet these standards but, each unit must be tested at system level. Shielded cables and line filters required. Read more
Aerospace Airborne DC to DC Low Output Power Supply. Designed for MIL-STD-704 Applications – UAV, Venom, Global Hawk, Predator, Shadow, Reaper, Avenger, Warrior and more
The AERO-VIC SeriesTM is a Aerospace DC to DC Low Output Power Converter Designed for UAV, Venom, Global Hawk, Predator, Shadow, Reaper, Avenger, Warrior and more.
The AERO-VIC SeriesTM is a series of ruggedized MIL-STD-704 Aerospace compliant DC to DC systems built for deployment and operations equipment. This series is available to all Aerospace, homeland security and government contractors. Light weight and built for reliability, these fully ruggedized systems are ready for world wide deployment.
The AERO-VIC SeriesTM provides 24 VDC Aerospace (MIL-STD-704) compliant input (9-36 or 18-36VDC Range) power with a multitude of output possibilities to include custom systems as required. These systems have internal surge suppression and wide temperature ranges. The AERO-VIC SeriesTM is available in both chassis mount and can come in rack mount configurations when required.
Highlights
• Universal DC Input Voltages (9-36VDC & 18-36VDC)
• Power Ranges from 0 – 500 Watts
• High Efficiencies
• High Temperature Ranges
• Standard mechanical enclosures designed for all environments
• Optional IP67 IP68 Submersible chassis
• Configurable for short lead times
• Industry standard connection points
• Cooling: Conduction Cooled/ Heatsink / Fanned Designs
• Very Low Weight
-
DC Input Voltage: 18-36VDC (9-36 VDC Available)
DC Output: Multiple outputs
Operating Temperature: -20C to 100C (max)
Storage Temperature: -40C to 125C(max)
Overload Protection: 110 to 180% of full load
Total Output Power: 0 – 500 Watts (depending on input voltage)
Efficiency: up to 93%
Line Regulation: 0.2% for 10% Line ChangeLoad Regulation: < +/- 1% Ripple: 2% of Output Voltage Current Limit: Over Current & Short Circuit Protection
Physical Dimensions: Depends on Power Output
Connector: Circular Connectors
Weight: Est. 2-12LBS
Over Voltage Protection: Depends on Output Voltage
Set Point Accuracy: < +/- 1% -
